Custom Dual-Curved Metal Staircases: 3D Shop Drawings & Pre-Fabrication Guide
Table of Contents
For luxury residential and high-end commercial projects, a dual-curved staircase is more than just a functional structure—it is the architectural centerpiece. However, for builders and developers sourcing architectural metalwork globally, these complex geometric designs present a significant risk. A fraction of a degree off in the manufacturing process can lead to massive delays and costly on-site rework.
At Stark & Smith, we bridge the gap between ambitious architectural designs and precise manufacturing. Drawing on extensive on-site engineering experience, we understand that successful offshore sourcing relies on two non-negotiable processes: exact 3D shop drawings and 1:1 factory pre-assembly.
The Engineering Challenge of the Dual-Curved Staircase
Unlike standard straight or spiral stairs, a dual-curved staircase curves on two axes simultaneously. This requires calculating complex spatial curvatures, structural load-bearing capacities, and precise stringer twisting.
When working with international clients—whether for a luxury villa or a multi-story commercial showroom—the main concern is always installation accuracy. Local contractors cannot afford to force-fit steel components that were manufactured incorrectly thousands of miles away.
Why 3D Shop Drawings are Non-Negotiable
The foundation of a successful custom staircase project is the translation of architectural intent into manufacturing reality. Before any steel is cut, our engineering team produces comprehensive 3D shop drawings based on your site measurements and architectural plans. This process allows us to:
- Identify and resolve structural clashes before fabrication.
- Ensure the design complies with local building standards (such as IBC in North America, BS EN in Europe/UK, and BCA in Australia).
- Provide a clear visual confirmation for the builder and the interior designer.
Only when the shop drawings are approved by your team do we move to the fabrication stage.
1:1 Factory Pre-Assembly: Guaranteeing Zero On-Site Rework

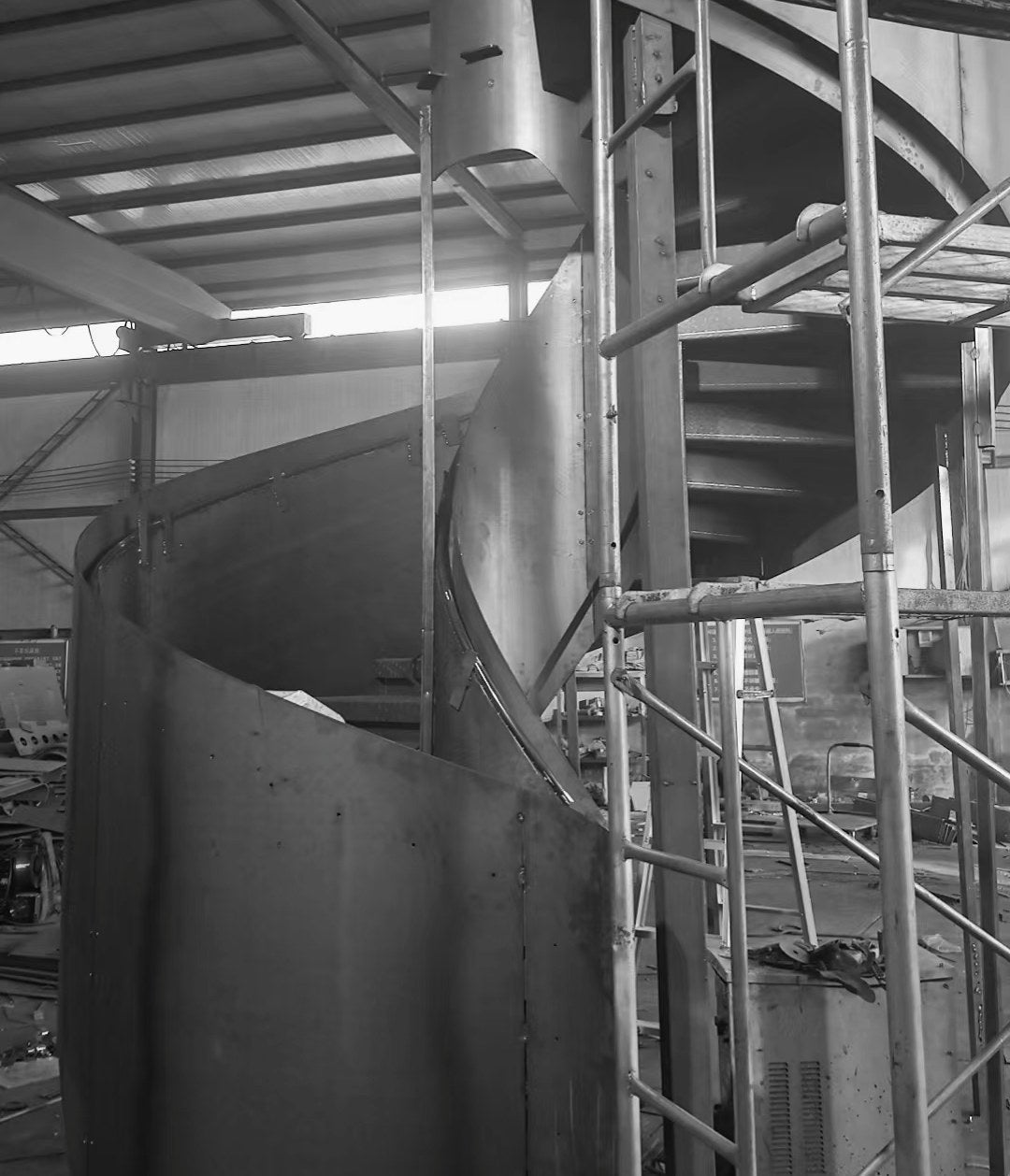

How do we guarantee that a multi-story pre-fabricated staircase will fit perfectly when it arrives at your site? The answer is our rigorous factory pre-assembly process. At our advanced manufacturing facility, every custom staircase is fully assembled exactly as it will stand in the final project.
- Laser-Guided Fabrication: We use precision laser cutting and CNC rolling to form the dual-curved steel stringers and handrails.
- Trial Assembly: The entire structure, including treads, risers, and balustrades, is welded and bolted together on our factory floor.
- Video Verification: We conduct a final quality control inspection and provide detailed videos and photos of the assembled staircase. You see the finished product fitting perfectly before it is ever packed into a shipping container.
Specialized Packaging for Global Shipping
Shipping oversized custom metal components across the globe requires specialized logistics. We engineer custom steel and timber crates for our dual-curved staircases to ensure no deformation or surface scratching occurs during transit. Whether the destination is the Middle East, Europe, or the Americas, the product arrives in pristine condition, ready for direct installation.
FAQ: Sourcing Custom Metal Stairs Overseas
Q: Do your custom metal staircases comply with local building codes like IBC, BS EN, or BCA?
A: Yes. Before fabrication, our engineering team produces comprehensive 3D shop drawings. We ensure structural integrity and compliance with local standards (such as handrail heights, riser dimensions, and load-bearing capacities) based on your regional requirements.
Q: How do you prevent deformation to oversized curved stairs during international shipping?
A: We engineer custom steel and timber crates specifically designed for each project's dimensions. By securing the components rigidly within these crates, we eliminate shifting and protect the surface finish during ocean freight.
Q: What happens if there are tolerance issues during on-site installation?
A: We eliminate on-site tolerance issues through our 1:1 factory pre-assembly process. The entire staircase is fully assembled in our facility exactly as it will stand on-site. We provide video verification before shipping, ensuring zero rework for your local contractors.
Q: What is the typical lead time for a custom dual-curved metal staircase?
A: Once the 3D shop drawings are approved, fabrication and 1:1 pre-assembly typically take 4 to 6 weeks, depending on the complexity. Shipping times vary by destination, but we coordinate closely with your project schedule.
Stop taking risks with generic fabricators who don't understand site realities. Stark & Smith delivers high-end custom metal staircases built to your exact specifications.
